RX87減速機重量：RX87減速機重量39公斤，RX87減速機與電機重量分別如下：

RX87減速機與3KW電機重量74公斤,RX87減速機與4KW電機重量85公斤,RX87減速機與5.5KW電機重量99公斤,RX87減速機與7.5KW電機重量112公斤,RX87減速機與11KW電機重量154公斤,RX87減速機與15KW電機重量174公斤,RX87減速機與18.5KW電機重量211公斤,RX87減速機與22KW電機重量224公斤。同軸減速機

RX87減速機加油量：可加齒輪油

RX87減速機M3安裝加4.8L，RX87減速機M2安裝加2.5L，RX87減速機M1安裝加1.7L，RX87減速機M4安裝加4.8L，RX87減速機M5安裝加2.9L，RX87減速機M6安裝加2.9L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。齒輪減速機

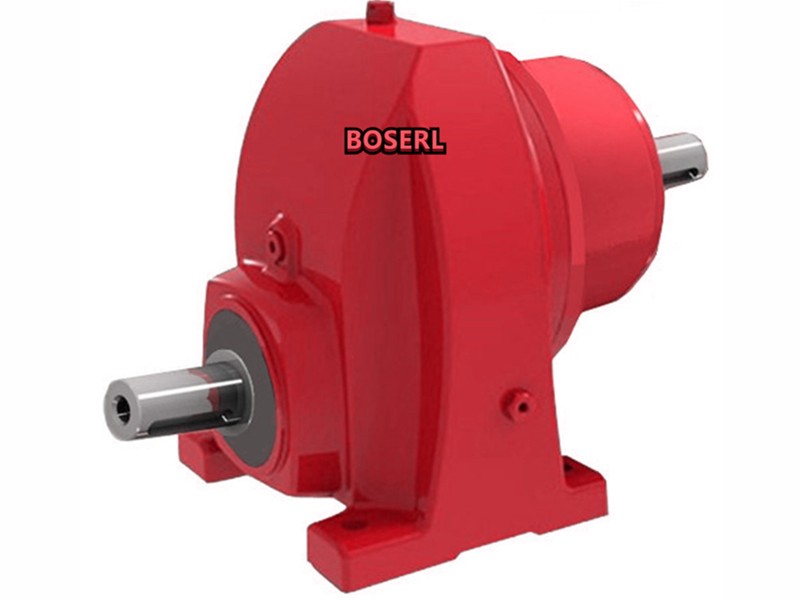

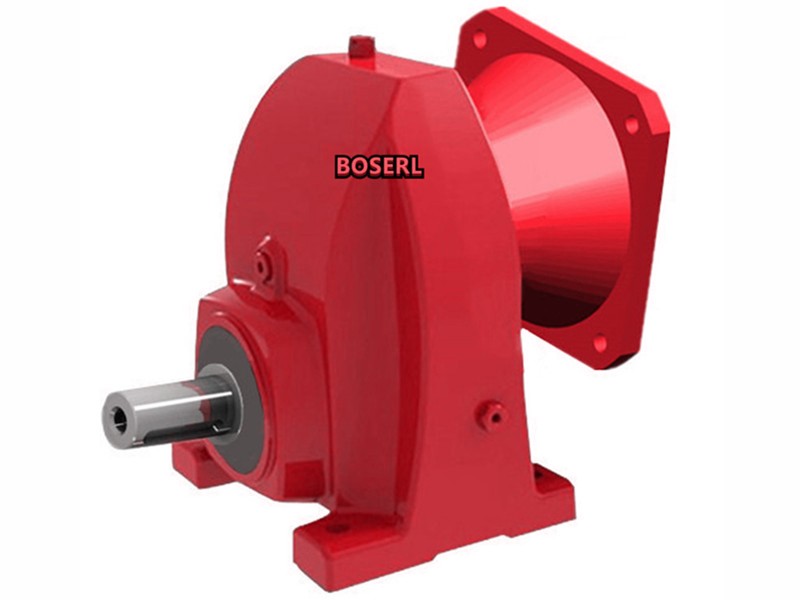

RX87減速機實物圖：圖一為RX87減速機不同心臥式底腳安裝，圖二為R87底腳安裝斜齒輪減速機，圖三為RF87法蘭立式安裝斜齒輪減速機，圖四為RXF87減速機不同心立式法蘭安裝。

RX87減速機型號表示方法：

RX87減速機型號結構RX87-B15KW-4P-減速比-安裝方式-接線盒位置。

RX87減速機性能參數表結構說明：Nm代表輸出扭矩，1/min代表輸出轉數，KW代表電機功率，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入帶置。電機減速機一體機

RX87減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

RX87減速機參數：

RX87減速機輸出轉速162rpm,183rpm,194rpm,217rpm,252rpm,276rpm,311rpm,370rpm,402rpm,453rpm,507rpm,565rpm,651rpm,725rpm,875rpm,1005rpm。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RX87減速機電機可帶防爆、剎車、變頻、伺服、交流、直流、三相、單相電機RX87與3KW,RX87與4KW,RX87與5.5KW,RX87與7.5KW,RX87與11KW,RX87與15KW,RX87與18.5KW,RX87與22KW。

RX87減速機減速比1:1.39,1:1.6,1:1.93,1:2.15,1:2.48,1:2.76,1:3.09,1:3.48,1:3.78,1:4.5,1:5.07,1:5.56,1:6.45,1:7.2,1:7.63,1:8.65

RX87減速機負載扭矩49Nm,139Nm,140Nm,192Nm,225Nm,250Nm,290Nm,290Nm,305Nm,315Nm,355Nm,385Nm,405Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大使用）

RX87減速機安裝尺寸：高332*寬266*長269（帶輸出軸）

RX87減速機型號：RX87AQA80,RX87AQA100,RX87AQA115,RX87AQA140,RX87AQA160,RX87AQA190,RX87AQH80,RX87AQH100,RX87AQH115,RX87AQH140,RX87AQH160,RX87AQH190,JRTRX87-Y0.37KW,JRTRX87-Y0.55KW,JRTRX87-Y0.75KW,JRTRX87-Y1.1KW,JRTRX87-Y1.5KW,JRTRX87-Y100M4,JRTRX87-Y112M4,JRTRX87-Y11KW,JRTRX87-Y132M4,JRTRX87-Y15KW,JRTRX87-Y160M4,JRTRX87-Y18.5KW,JRTRX87-Y180M4,JRTRX87-Y2.2KW,JRTRX87-Y200M4,JRTRX87-Y22KW,JRTRX87-Y30KW,JRTRX87-Y3KW,JRTRX87-Y4KW,JRTRX87-Y5.5KW,JRTRX87-Y7.5KW,JRTRX87-Y71M4,JRTRX87-Y80M4,JRTRX87-Y90M4,JRTRX87-YEJ100M4,JRTRX87-YEJ112M4,JRTRX87-YEJ132M4,JRTRX87-YEJ160M4,JRTRX87-YEJ180M4,JRTRX87-YEJ200M4,JRTRX87-YEJ71M4,JRTRX87-YEJ80M4,JRTRX87-YEJ90M4,JRTRX87-YS100M4,JRTRX87-YS112M4,JRTRX87-YS132M4,JRTRX87-YS160M4,JRTRX87-YS180M4,JRTRX87-YS200M4,JRTRX87-YS71M4,JRTRX87-YS80M4,JRTRX87-YS90M4,JRTRX87-YVP100M4,JRTRX87-YVP112M4,JRTRX87-YVP132M4,JRTRX87-YVP160M4,JRTRX87-YVP180M4,JRTRX87-YVP200M4,JRTRX87-YVP71M4,JRTRX87-YVP80M4,JRTRX87-YVP90M4,JRTRX87-YVPEJ100M4,JRTRX87-YVPEJ112M4,JRTRX87-YVPEJ132M4,JRTRX87-YVPEJ160M4,JRTRX87-YVPEJ180M4,JRTRX87-YVPEJ200M4,JRTRX87-YVPEJ71M4,JRTRX87-YVPEJ80M4,JRTRX87-YVPEJ90M4,EWRX87-Y0.37KW,EWRX87-Y0.55KW,EWRX87-Y0.75KW,EWRX87-Y1.1KW,EWRX87-Y1.5KW,EWRX87-Y100M4,EWRX87-Y112M4,EWRX87-Y11KW,EWRX87-Y132M4,EWRX87-Y15KW,EWRX87-Y160M4,EWRX87-Y18.5KW,EWRX87-Y180M4,EWRX87-Y2.2KW,EWRX87-Y200M4,EWRX87-Y22KW,EWRX87-Y30KW,EWRX87-Y3KW,EWRX87-Y4KW,EWRX87-Y5.5KW,EWRX87-Y7.5KW,EWRX87-Y71M4,EWRX87-Y80M4,EWRX87-Y90M4,EWRX87-YEJ100M4,EWRX87-YEJ112M4,EWRX87-YEJ132M4,EWRX87-YEJ160M4,EWRX87-YEJ180M4,EWRX87-YEJ200M4,EWRX87-YEJ71M4,EWRX87-YEJ80M4,EWRX87-YEJ90M4,EWRX87-YS100M4,EWRX87-YS112M4,EWRX87-YS132M4,EWRX87-YS160M4,EWRX87-YS180M4,EWRX87-YS200M4,EWRX87-YS71M4,EWRX87-YS80M4,EWRX87-YS90M4,EWRX87-YVP100M4,EWRX87-YVP112M4,EWRX87-YVP132M4,EWRX87-YVP160M4,EWRX87-YVP180M4,EWRX87-YVP200M4,EWRX87-YVP71M4,EWRX87-YVP80M4,EWRX87-YVP90M4,EWRX87-YVPEJ100M4,EWRX87-YVPEJ112M4,EWRX87-YVPEJ132M4,EWRX87-YVPEJ160M4,EWRX87-YVPEJ180M4,EWRX87-YVPEJ200M4,EWRX87-YVPEJ71M4,EWRX87-YVPEJ80M4,EWRX87-YVPEJ90M4,SLRX87-Y0.37KW,SLRX87-Y0.55KW,SLRX87-Y0.75KW,SLRX87-Y1.1KW,SLRX87-Y1.5KW,SLRX87-Y100M4,SLRX87-Y112M4,SLRX87-Y11KW,SLRX87-Y132M4,SLRX87-Y15KW,SLRX87-Y160M4,SLRX87-Y18.5KW,SLRX87-Y180M4,SLRX87-Y2.2KW,SLRX87-Y200M4,SLRX87-Y22KW,SLRX87-Y30KW,SLRX87-Y3KW,SLRX87-Y4KW,SLRX87-Y5.5KW,SLRX87-Y7.5KW,SLRX87-Y71M4,SLRX87-Y80M4,SLRX87-Y90M4,SLRX87-YEJ100M4,SLRX87-YEJ112M4,SLRX87-YEJ132M4,SLRX87-YEJ160M4,SLRX87-YEJ180M4,SLRX87-YEJ200M4,SLRX87-YEJ71M4,SLRX87-YEJ80M4,SLRX87-YEJ90M4,SLRX87-YS100M4,SLRX87-YS112M4,SLRX87-YS132M4,SLRX87-YS160M4,SLRX87-YS180M4,SLRX87-YS200M4,SLRX87-YS71M4,SLRX87-YS80M4,SLRX87-YS90M4,SLRX87-YVP100M4,SLRX87-YVP112M4,SLRX87-YVP132M4,SLRX87-YVP160M4,SLRX87-YVP180M4,SLRX87-YVP200M4,SLRX87-YVP71M4,SLRX87-YVP80M4,SLRX87-YVP90M4,SLRX87-YVPEJ100M4,SLRX87-YVPEJ112M4,SLRX87-YVPEJ132M4,SLRX87-YVPEJ160M4,SLRX87-YVPEJ180M4,SLRX87-YVPEJ200M4,SLRX87-YVPEJ71M4,SLRX87-YVPEJ80M4,SLRX87-YVPEJ90M4,DSZRX87-Y0.37KW,DSZRX87-Y0.55KW,DSZRX87-Y0.75KW,DSZRX87-Y1.1KW,DSZRX87-Y1.5KW,DSZRX87-Y100M4,DSZRX87-Y112M4,DSZRX87-Y11KW,DSZRX87-Y132M4,DSZRX87-Y15KW,DSZRX87-Y160M4,DSZRX87-Y18.5KW,DSZRX87-Y180M4,DSZRX87-Y2.2KW,DSZRX87-Y200M4,DSZRX87-Y22KW,DSZRX87-Y30KW,DSZRX87-Y3KW,DSZRX87-Y4KW,DSZRX87-Y5.5KW,DSZRX87-Y7.5KW,DSZRX87-Y71M4,DSZRX87-Y80M4,DSZRX87-Y90M4,DSZRX87-YEJ100M4,DSZRX87-YEJ112M4,DSZRX87-YEJ132M4,DSZRX87-YEJ160M4,DSZRX87-YEJ180M4,DSZRX87-YEJ200M4,DSZRX87-YEJ71M4,DSZRX87-YEJ80M4,DSZRX87-YEJ90M4,DSZRX87-YS100M4,DSZRX87-YS112M4,DSZRX87-YS132M4,DSZRX87-YS160M4,DSZRX87-YS180M4,DSZRX87-YS200M4,DSZRX87-YS71M4,DSZRX87-YS80M4,DSZRX87-YS90M4,DSZRX87-YVP100M4,DSZRX87-YVP112M4,DSZRX87-YVP132M4,DSZRX87-YVP160M4,DSZRX87-YVP180M4,DSZRX87-YVP200M4,DSZRX87-YVP71M4,DSZRX87-YVP80M4,DSZRX87-YVP90M4,DSZRX87-YVPEJ100M4,DSZRX87-YVPEJ112M4,DSZRX87-YVPEJ132M4,DSZRX87-YVPEJ160M4,DSZRX87-YVPEJ180M4,DSZRX87-YVPEJ200M4,DSZRX87-YVPEJ71M4,DSZRX87-YVPEJ80M4,DSZRX87-YVPEJ90M4,BRX87-Y0.37KW,BRX87-Y0.55KW,BRX87-Y0.75KW,BRX87-Y1.1KW,BRX87-Y1.5KW,BRX87-Y100M4,BRX87-Y112M4,BRX87-Y11KW,BRX87-Y132M4,BRX87-Y15KW,BRX87-Y160M4,BRX87-Y18.5KW,BRX87-Y180M4,BRX87-Y2.2KW,BRX87-Y200M4,BRX87-Y22KW,BRX87-Y30KW,BRX87-Y3KW,BRX87-Y4KW,BRX87-Y5.5KW,BRX87-Y7.5KW,BRX87-Y71M4,BRX87-Y80M4,BRX87-Y90M4,BRX87-YEJ100M4,BRX87-YEJ112M4,BRX87-YEJ132M4,BRX87-YEJ160M4,BRX87-YEJ180M4,BRX87-YEJ200M4,BRX87-YEJ71M4,BRX87-YEJ80M4,BRX87-YEJ90M4,BRX87-YS100M4,BRX87-YS112M4,BRX87-YS132M4,BRX87-YS160M4,BRX87-YS180M4,BRX87-YS200M4,BRX87-YS71M4,BRX87-YS80M4,BRX87-YS90M4,BRX87-YVP100M4,BRX87-YVP112M4,BRX87-YVP132M4,BRX87-YVP160M4,BRX87-YVP180M4,BRX87-YVP200M4,BRX87-YVP71M4,BRX87-YVP80M4,BRX87-YVP90M4,BRX87-YVPEJ100M4,BRX87-YVPEJ112M4,BRX87-YVPEJ132M4,BRX87-YVPEJ160M4,BRX87-YVPEJ180M4,BRX87-YVPEJ200M4,BRX87-YVPEJ71M4,BRX87-YVPEJ80M4,BRX87-YVPEJ90M4,GRX87-Y0.37KW,GRX87-Y0.55KW,GRX87-Y0.75KW,GRX87-Y1.1KW,GRX87-Y1.5KW,GRX87-Y100M4,GRX87-Y112M4,GRX87-Y11KW,GRX87-Y132M4,GRX87-Y15KW,GRX87-Y160M4,GRX87-Y18.5KW,GRX87-Y180M4,GRX87-Y2.2KW,GRX87-Y200M4,GRX87-Y22KW,GRX87-Y30KW,GRX87-Y3KW,GRX87-Y4KW,GRX87-Y5.5KW,GRX87-Y7.5KW,GRX87-Y71M4,GRX87-Y80M4,GRX87-Y90M4,GRX87-YEJ100M4,GRX87-YEJ112M4,GRX87-YEJ132M4,GRX87-YEJ160M4,GRX87-YEJ180M4,GRX87-YEJ200M4,GRX87-YEJ71M4,GRX87-YEJ80M4,GRX87-YEJ90M4,GRX87-YS100M4,GRX87-YS112M4,GRX87-YS132M4,GRX87-YS160M4,GRX87-YS180M4,GRX87-YS200M4,GRX87-YS71M4,GRX87-YS80M4,GRX87-YS90M4,GRX87-YVP100M4,GRX87-YVP112M4,GRX87-YVP132M4,GRX87-YVP160M4,GRX87-YVP180M4,GRX87-YVP200M4,GRX87-YVP71M4,GRX87-YVP80M4,GRX87-YVP90M4,GRX87-YVPEJ100M4,GRX87-YVPEJ112M4,GRX87-YVPEJ132M4,GRX87-YVPEJ160M4,GRX87-YVPEJ180M4,GRX87-YVPEJ200M4,GRX87-YVPEJ71M4,GRX87-YVPEJ80M4,GRX87-YVPEJ90M4,RCX87-Y0.37KW,RCX87-Y0.55KW,RCX87-Y0.75KW,RCX87-Y1.1KW,RCX87-Y1.5KW,RCX87-Y100M4,RCX87-Y112M4,RCX87-Y11KW,RCX87-Y132M4,RCX87-Y15KW,RCX87-Y160M4,RCX87-Y18.5KW,RCX87-Y180M4,RCX87-Y2.2KW,RCX87-Y200M4,RCX87-Y22KW,RCX87-Y30KW,RCX87-Y3KW,RCX87-Y4KW,RCX87-Y5.5KW,RCX87-Y7.5KW,RCX87-Y71M4,RCX87-Y80M4,RCX87-Y90M4,RCX87-YEJ100M4,RCX87-YEJ112M4,RCX87-YEJ132M4,RCX87-YEJ160M4,RCX87-YEJ180M4,RCX87-YEJ200M4,RCX87-YEJ71M4,RCX87-YEJ80M4,RCX87-YEJ90M4,RCX87-YS100M4,RCX87-YS112M4,RCX87-YS132M4,RCX87-YS160M4,RCX87-YS180M4,RCX87-YS200M4,RCX87-YS71M4,RCX87-YS80M4,RCX87-YS90M4,RCX87-YVP100M4,RCX87-YVP112M4,RCX87-YVP132M4,RCX87-YVP160M4,RCX87-YVP180M4,RCX87-YVP200M4,RCX87-YVP71M4,RCX87-YVP80M4,RCX87-YVP90M4,RCX87-YVPEJ100M4,RCX87-YVPEJ112M4,RCX87-YVPEJ132M4,RCX87-YVPEJ160M4,RCX87-YVPEJ180M4,RCX87-YVPEJ200M4,RCX87-YVPEJ71M4,RCX87-YVPEJ80M4,RCX87-YVPEJ90M4,MTDX87-Y0.37KW,MTDX87-Y0.55KW,MTDX87-Y0.75KW,MTDX87-Y1.1KW,MTDX87-Y1.5KW,MTDX87-Y100M4,MTDX87-Y112M4,MTDX87-Y11KW,MTDX87-Y132M4,MTDX87-Y15KW,MTDX87-Y160M4,MTDX87-Y18.5KW,MTDX87-Y180M4,MTDX87-Y2.2KW,MTDX87-Y200M4,MTDX87-Y22KW,MTDX87-Y30KW,MTDX87-Y3KW,MTDX87-Y4KW,MTDX87-Y5.5KW,MTDX87-Y7.5KW,MTDX87-Y71M4,MTDX87-Y80M4,MTDX87-Y90M4,MTDX87-YEJ100M4,MTDX87-YEJ112M4,MTDX87-YEJ132M4,MTDX87-YEJ160M4,MTDX87-YEJ180M4,MTDX87-YEJ200M4,MTDX87-YEJ71M4,MTDX87-YEJ80M4,MTDX87-YEJ90M4,MTDX87-YS100M4,MTDX87-YS112M4,MTDX87-YS132M4,MTDX87-YS160M4,MTDX87-YS180M4,MTDX87-YS200M4,MTDX87-YS71M4,MTDX87-YS80M4,MTDX87-YS90M4,MTDX87-YVP100M4,MTDX87-YVP112M4,MTDX87-YVP132M4,MTDX87-YVP160M4,MTDX87-YVP180M4,MTDX87-YVP200M4,MTDX87-YVP71M4,MTDX87-YVP80M4,MTDX87-YVP90M4,MTDX87-YVPEJ100M4,MTDX87-YVPEJ112M4,MTDX87-YVPEJ132M4,MTDX87-YVPEJ160M4,MTDX87-YVPEJ180M4,MTDX87-YVPEJ200M4,MTDX87-YVPEJ71M4,MTDX87-YVPEJ80M4,MTDX87-YVPEJ90M4,WXRX87-WSS0.37KW,WXRX87-WSS0.55KW,WXRX87-WSS0.75KW,WXRX87-WSS1.1KW,WXRX87-WSS1.5KW,WXRX87-WSS100M4,WXRX87-WSS112M4,WXRX87-WSS11KW,WXRX87-WSS132M4,WXRX87-WSS15KW,WXRX87-WSS160M4,WXRX87-WSS18.5KW,WXRX87-WSS180M4,WXRX87-WSS2.2KW,WXRX87-WSS200M4,WXRX87-WSS22KW,WXRX87-WSS30KW,WXRX87-WSS3KW,WXRX87-WSS4KW,WXRX87-WSS5.5KW,WXRX87-WSS7.5KW,WXRX87-WSS71M4,WXRX87-WSS80M4,WXRX87-WSS90M4,WXRX87-WSSB100M4,WXRX87-WSSB112M4,WXRX87-WSSB132M4,WXRX87-WSSB160M4,WXRX87-WSSB180M4,WXRX87-WSSB200M4,WXRX87-WSSB71M4,WXRX87-WSSB80M4,WXRX87-WSSB90M4,WXRX87-WSSVP100M4,WXRX87-WSSVP112M4,WXRX87-WSSVP132M4,WXRX87-WSSVP160M4,WXRX87-WSSVP180M4,WXRX87-WSSVP200M4,WXRX87-WSSVP71M4,WXRX87-WSSVP80M4,WXRX87-WSSVP90M4,WXRX87-WSSVPB100M4,WXRX87-WSSVPB112M4,WXRX87-WSSVPB132M4,WXRX87-WSSVPB160M4,WXRX87-WSSVPB180M4,WXRX87-WSSVPB200M4,WXRX87-WSSVPB71M4,WXRX87-WSSVPB80M4,WXRX87-WSSVPB90M4。

RX87減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.global-iic.com/product/list-rxxiliejiansuji-cn.html

推薦類似型號：R87減速機
